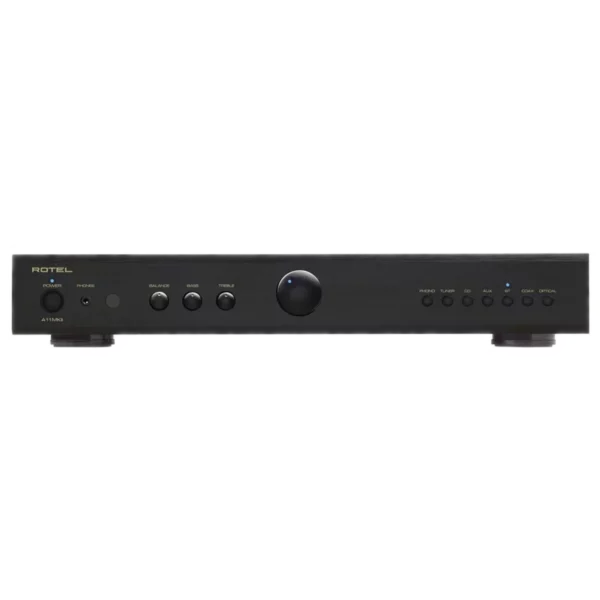

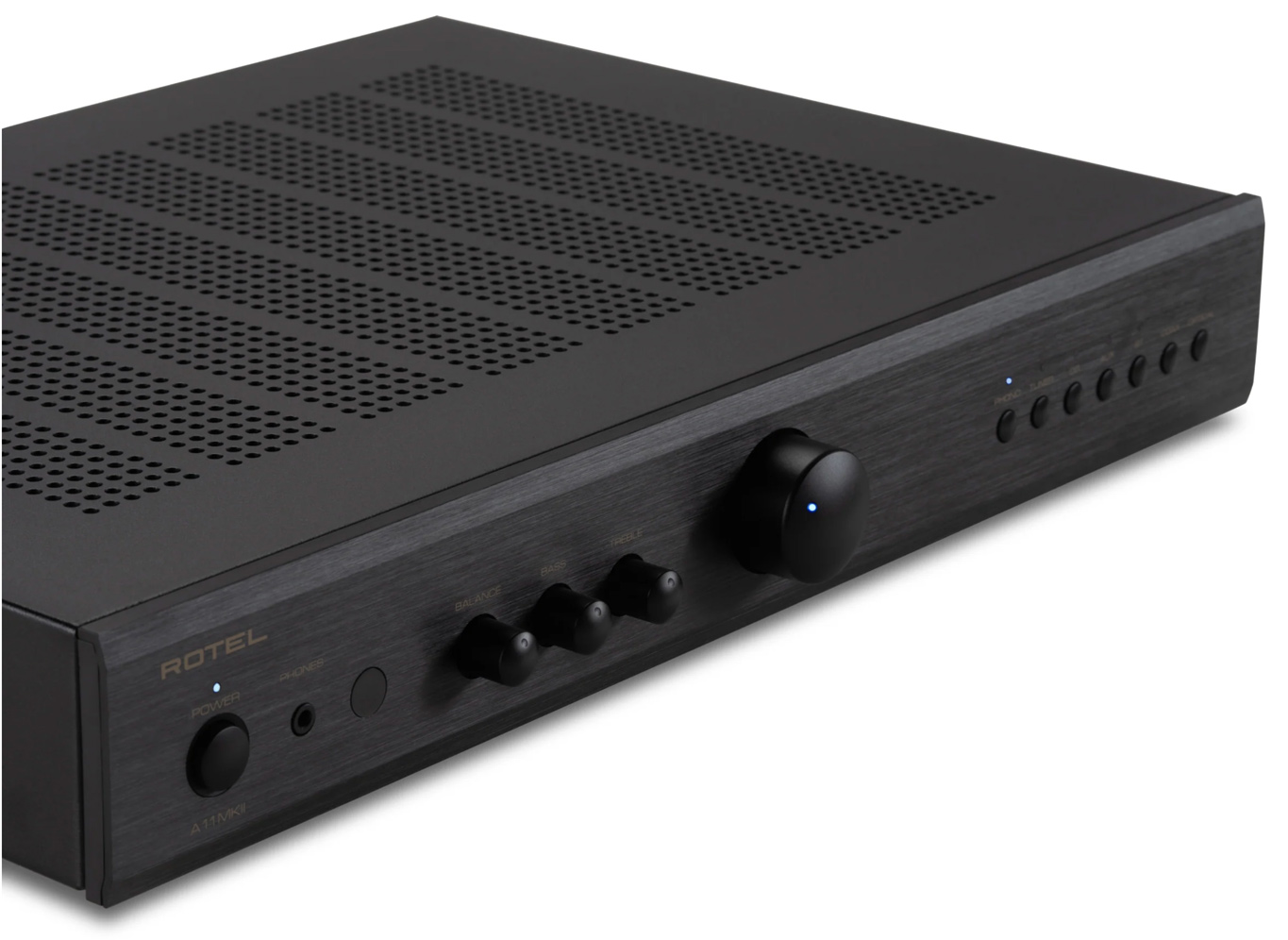

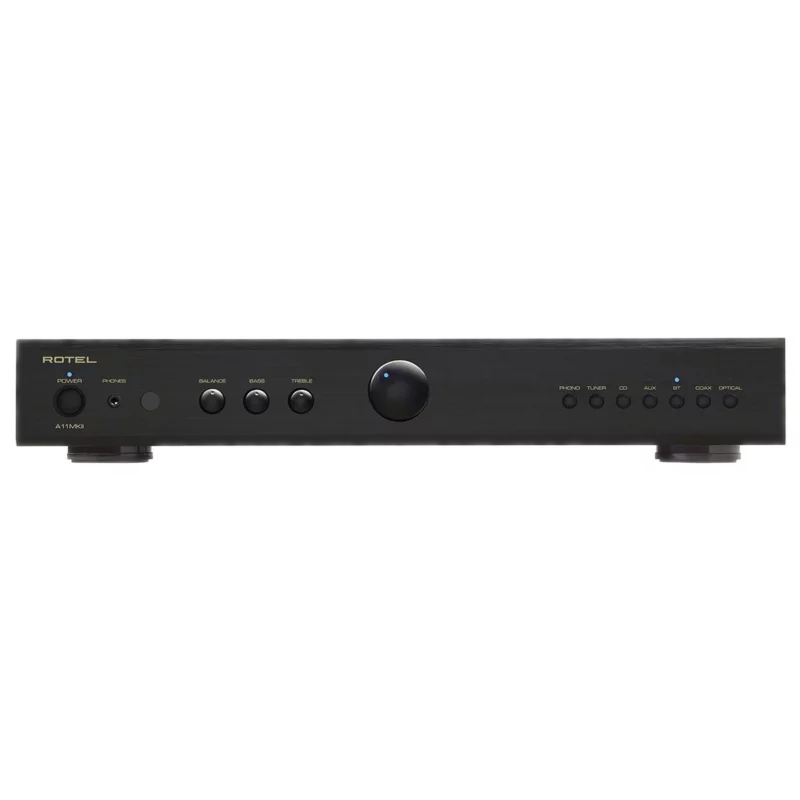

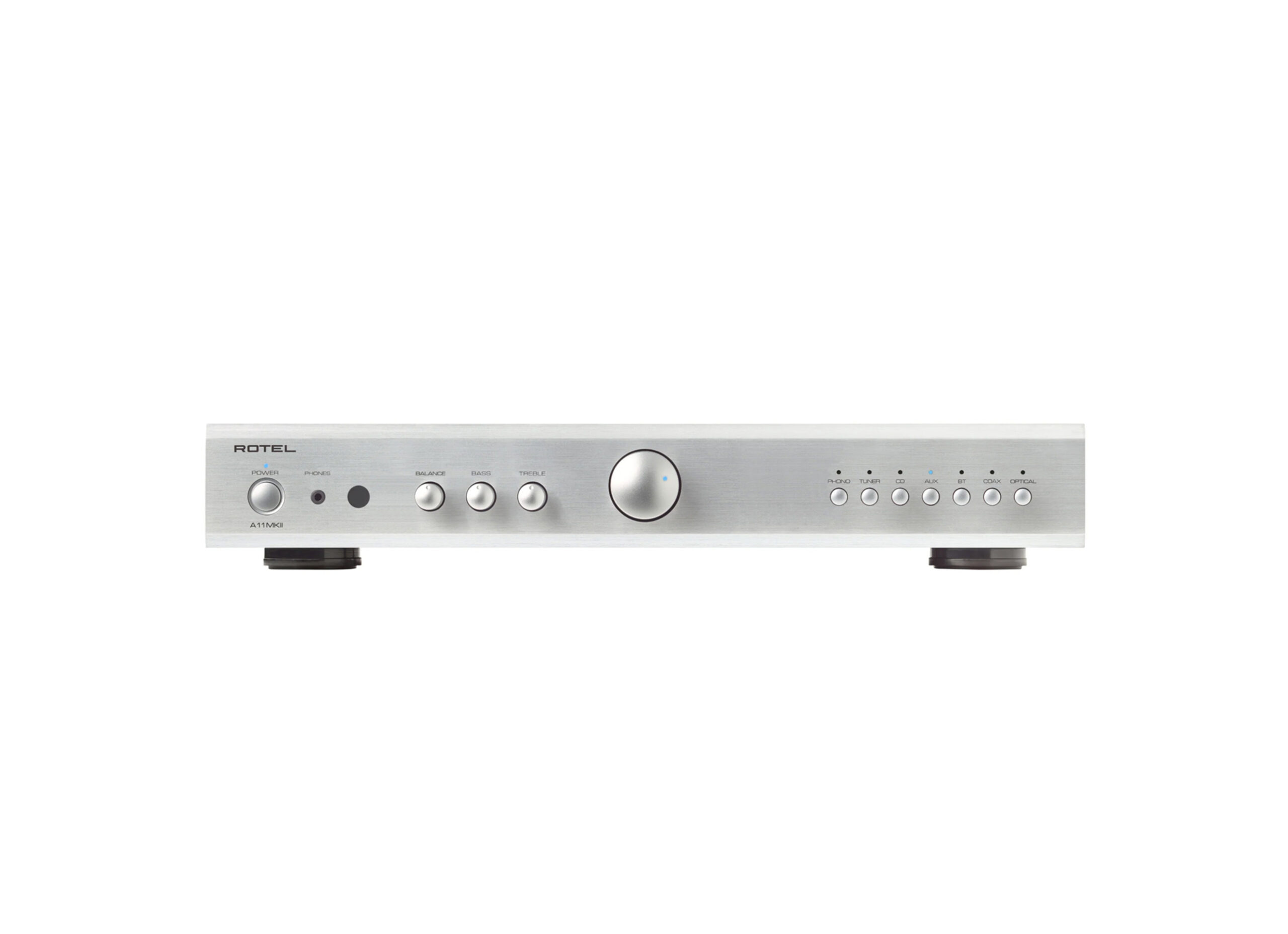

Rotel A11 Mk II Integrated Amplifier

The A11MKII Integrated Amplifier delivers the ideal combination of power and connectivity for anyone seeking to elevate their listening experience.

Constructed around a massive Rotel-built toroidal power transformer, the A11MKII delivers 50 Watts per channel of Class A/B power into 8 ohms supporting analog, digital, and Moving Magnet Phono stage inputs.

Exclusive Rotel power supply innovations and critical circuit layouts provide physical and electrical separation to lower the noise floor and increase musical dynamics. The A11MKII’s multi-tap transformer independently delivers power to sensitive low-voltage circuits and the high-current amplifier output stage, isolating the signal path from noise and reducing unwanted distortion. This sound-first design supports fast transients and delivers an expressive, open musical performance.

£699.00

SKU: Rotel A11 Mk II Integrated Amplifier Categories: , ,

To enquire about this or any other product,
please call either Rayleigh 01268 779762
or Chelmsford 01245 265245.

Features:

  • Power Output. 50 W/Ch (8 Ohms) 62 W/Ch (4 Ohms)
  • Total Harmonic Distortion (THD)
  • Frequency Response. Line Level Inputs: 10 Hz – 100k Hz, -0.5 dB, +0.05 dB. Phono Input: 20 Hz – 20k Hz, -0.5 dB, +0.3 dB.
  • S/N Ratio (IHF “A” Weighted) Line Level Inputs: 90 dB (Max Volume) Line Level Inputs: 95 dB (Min Volume)
  • Damping Factor (20-20kHz, 8 Ohms): 120
  • Tone Controls – Bass/Treble: ± 6 dB at 100 Hz / 10k Hz
  • Power Consumption: 150 Watts
  • Standby Power Consumption: < 0.5 Watts
