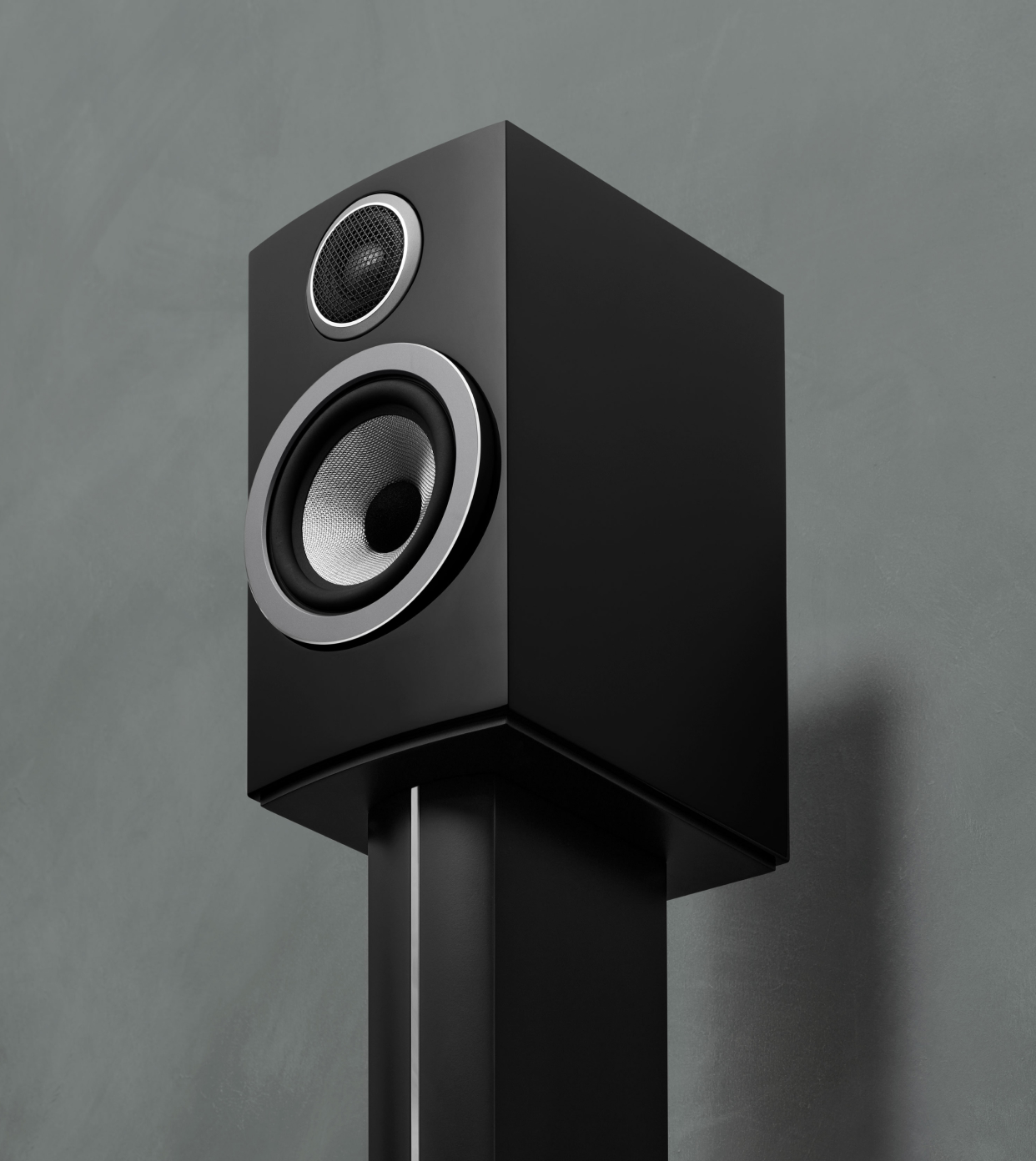

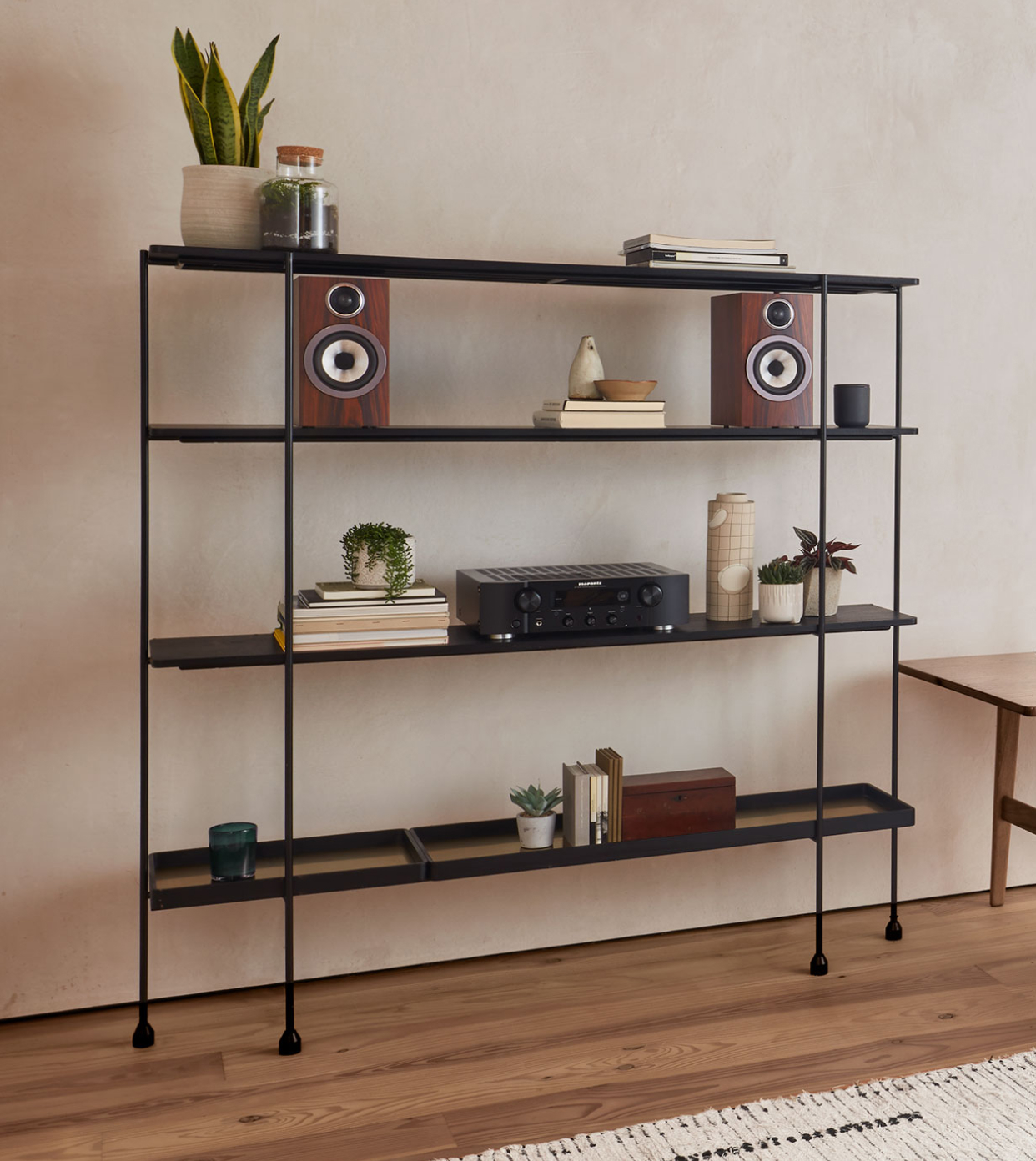

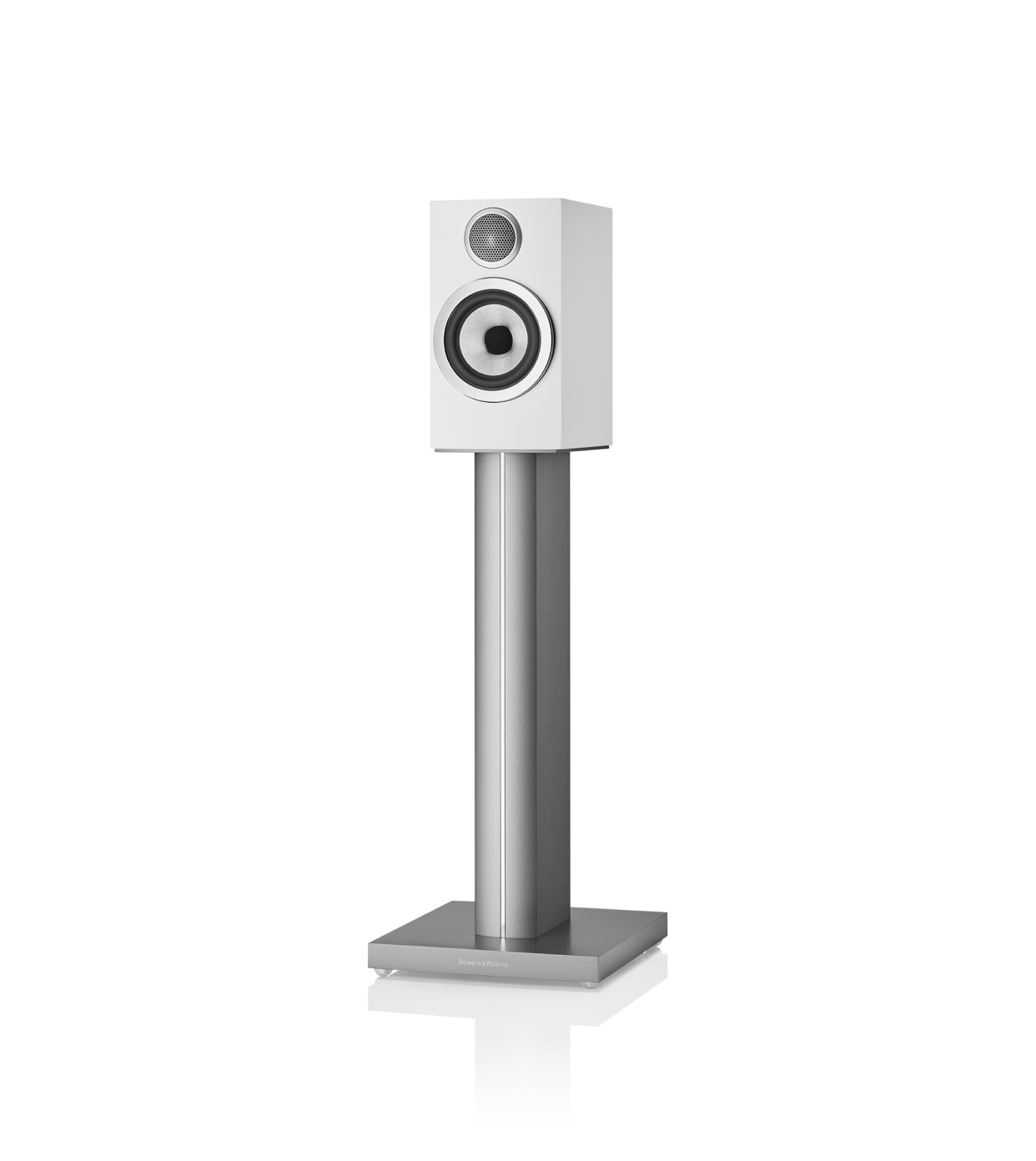

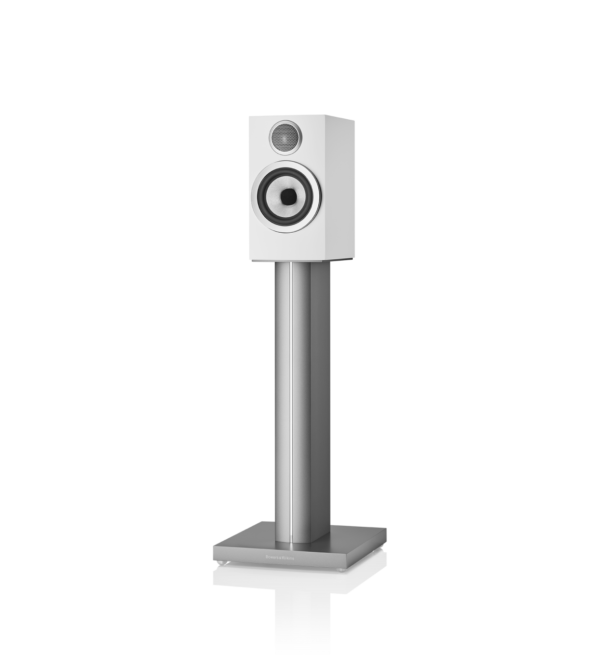

707 S3
707 S3’s space friendly design makes it easy to accommodate in smaller spaces, but thanks to its Carbon Dome tweeter, Continuum cone mid-bass and curved baffle, this outstanding loudspeaker provides proof positive than often, size can be deceptive.
* Stand(s) not included.
Sharper detail
Carbon Dome tweeters are purpose-built for the 700 Series. Delivering a dramatic improvement on the aluminum double dome tweeter, they raise the breakup threshold to 47kHz, for pinpoint imaging accuracy and detail.
Truly amazing sound
Thanks to its composite construction, the Continuum™ cone avoids the abrupt transitions in behavior that can impair the performance of a conventional drive unit. The result is a more open, neutral performance that delivers voices and instruments with precision and transparency.
PLANAR 3
NEW for 2024 – Light oak effect Planar 3 – available with Nd3 or Nd5 factory fitted.
Replacing the multi award winning What Hi-Fi? Product of the Year (RP3) was never going to be an easy task. It took our team of designers headed up by Rega’s Roy Gandy, two years to develop the all new ‘Planar 3’ following the biggest re-design of the iconic ‘Three’ model ever seen. The ‘Planar 3’ is a completely new turntable carrying over just two components from the previous RP model.
The iconic Planar 3
Rega has pioneered the use of lightweight rigid plinths. Clever use of lightweight particulate core with a highly rigid phenolic resin skin became the foundations of the high level of performance achieved by the now iconic original Planar range.
The new Planar 3 takes this design philosophy to the next level. A lightweight acrylic laminated plinth strengthened using a new improved double brace system mounted specifically where the increased rigidity is required (between the tonearm mounting and the main hub bearing) which forms a structurally sound “stressed beam” assembly. This rigid plinth design prevents energy absorption and unwanted resonance, which will add unnatural distortions to the music. Equally, heavier mass can transfer more unwanted energy, such as motor or bearing noise directly into the rotating record. The use of braces instead of the complete skin allows double thickness phenolic resin in these key areas while providing further weight reduction to the plinth which directly addresses the issue of mass absorption and unwanted energy transmission.
KEY FEATURES
- What Hi-Fi? Product of the year 2016, 2017, 2018, 2019, 2020, 2021
- RB330 precision tonearm
- Rega Nd3 MM cartridge factory fitted (optional)
- Rega Nd5 MM cartridge factory fitted (optional)
- Double brace technology
- 24 V low noise, low vibration motor
- 12 mm float glass opti-white polished platter
- Supplied with clear dust cover as standard.
- Compatible with Rega Neo turntable power supply (sold separately)
- Three high gloss plinth options and light oak effect (New for 2024)
- Advanced EBLT drive belt fitted as standard from March 2021
- Lifetime warranty against manufacture defects
- High-Gloss White
- High-Gloss Black
- High-Gloss Red
- Light Oak Effect
AVAILABLE IN GLOSS WHITE, GLOSS BLACK, GLOSS RED AND LIGHT OAK EFFECT.
RB330
The RB330 tonearm was designed using the latest 3D CAD & CAM technology, and is the culmination of more than 35 years of tonearm design experience. Featuring a brand new bearing housing, and our latest tonearm tube designed using intelligent redistribution of mass ensure this arm will exhibit fewer points of possible resonance. Extreme stability with almost friction free movement from the new high precision bearing assemblies guarantees to gather more information from your vinyl than ever before.
PLINTH
High gloss acrylic, laminated plinth, stiffer and vastly improved appearance, ergonomically positioned power switch. Available in three stunning high gloss finishes, black, white and red and new for 2024 Light oak effect.
DOUBLE BRACE TECHNOLOGY
Improved thicker 3 mm phenolic bottom brace and new metalised skin phenolic top brace.
BEARING HOUSING
Re-designed brass main hub central bearing, improved fit and construction reducing stress on the bearing itself.
ISOLATION
New improved foot to increase stability and reduce vibration transfer.
24 V MOTOR
Improved new motor control PCB with integration for the addition of Neo PSU for electronic speed change and improved advanced anti-vibration circuit (sold separately).
New motor cover tray with integrated cooling.
DUST COVER
Supplied as standard / optional lid – plinth protectors – supplied to prevent marks on the plinth and keep it looking its best.
SIMPLE SET-UP
Easy to use multi-lingual quick start guide for easy set up
SUB PLATTER
Re-designed sub platter, improved accuracy and improved stiffness.
PLATTER
New float glass ‘Optiwhite’ polished edge 12 mm – Improved accuracy in manufacture and stunning looks.
![PL3_module_3.jpg](https://www.rega.co.uk/assets/uploads/module-2-and-3-images/_800px/PL3_module_3.jpg)
![Planar 3 icon](https://www.rega.co.uk/assets/uploads/product-icons/icon--planar-3.png)
TECHNICAL SPECIFICATIONS
- Tonearm
- Hand assembled precision RB330 tonearm
- Motor
- 24 V low noise motor
- Platter
- 12 mm glass polished edge
- Connectivity
- RCA / Phono
- Power (additional)
- Mini DIN for connection to Neo PSU (optional upgrade)
- Dimensions (lid closed) (W x H x D)
- 447 x 117 x 360 mm
- Weight
- 6.0 kg

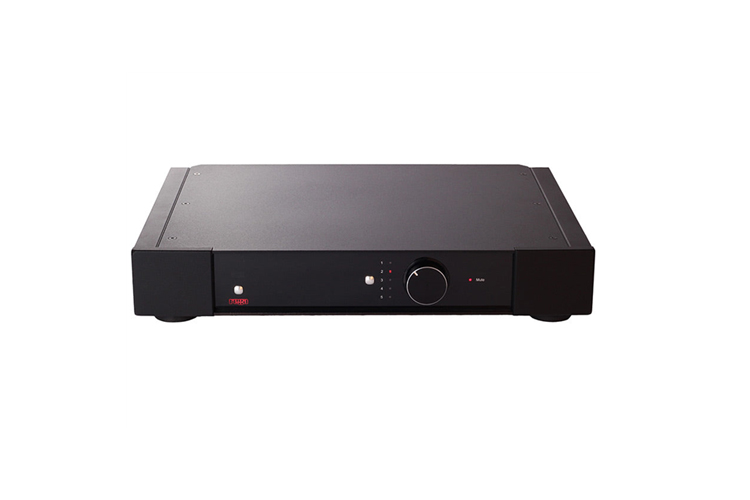

ELEX MK4
The Elex MK4 is a high performance stereo integrated amplifier designed to deliver the purest musical performance. Housed in a brand new case to match the rest of the Rega range, the MK4 builds on previous Rega designs using our multi-award winning class A/B power amplifier circuit which delivers an impressive 72W per channel into 8Ω loads (90W into 6Ω). New rear connectivity options are available with the Elex MK4 now including a Rega DAC circuit with two digital inputs and a high quality headphone output conveniently located on the front panel.
![ELEX_MK4_INTRO_2_(1).jpg](https://www.rega.co.uk/assets/uploads/product-intro-landscape/_900px/ELEX_MK4_INTRO_2_%281%29.jpg)
Bringing your music to life
The Elex MK4 is capable of driving difficult loudspeakers with ease and will integrate perfectly into any audio system by offering a wider range of connectivity options. In addition to the line level, digital inputs and a high quality moving magnet phono stage, you will also find Pre-out and Record Out functionality alongside a headphone output. Special attention has been paid to the selection of key audio components. Discrete circuitry, high quality relays, polypropylene capacitors and Sanken output transistors are used throughout the design.
KEY FEATURES
- 72 W per channel into 8 Ω / 90 W into 6 Ω
- High quality moving magnet phono stage
- High performance Rega DAC circuit for digital inputs
- 2 x Digital inputs – 1 x optical and 1 x Co-Axial
- Headphone output
- 4 Line level inputs
- New custom design case
- Thermal Cut-Out
- Lifetime warranty against manufacture defects
![ELEX_MK4_MOD2_V2_(3).jpg](https://www.rega.co.uk/assets/uploads/module-2-and-3-images/_800px/ELEX_MK4_MOD2_V2_%283%29.jpg)
![Elex MK4 icon](https://www.rega.co.uk/assets/uploads/product-icons/icon_elex-mk4.png)
TECHNICAL SPECIFICATIONS
- Power Amplifier Output (at rated 230/115 V Supply voltage)
- 72 W into 8 Ω
90 W into 6 Ω - Dimensions (W × H × D)
- 432 x 82 x 340 (D includes loudspeaker terminals)
- Weight
- 11 Kg
- Supported Sampling Rates
- 32, 44.1, 48, 88.2, 96, 176.4, 192kHz
- Supported Bit Depths
- 16 to 24 bit
- Power Consumption
- 250 W at 1dB below clip into 8Ω
- Output Sensitivity (at rated inputs)
- Record Output 164mV
Pre-amplifier Output 625mV
