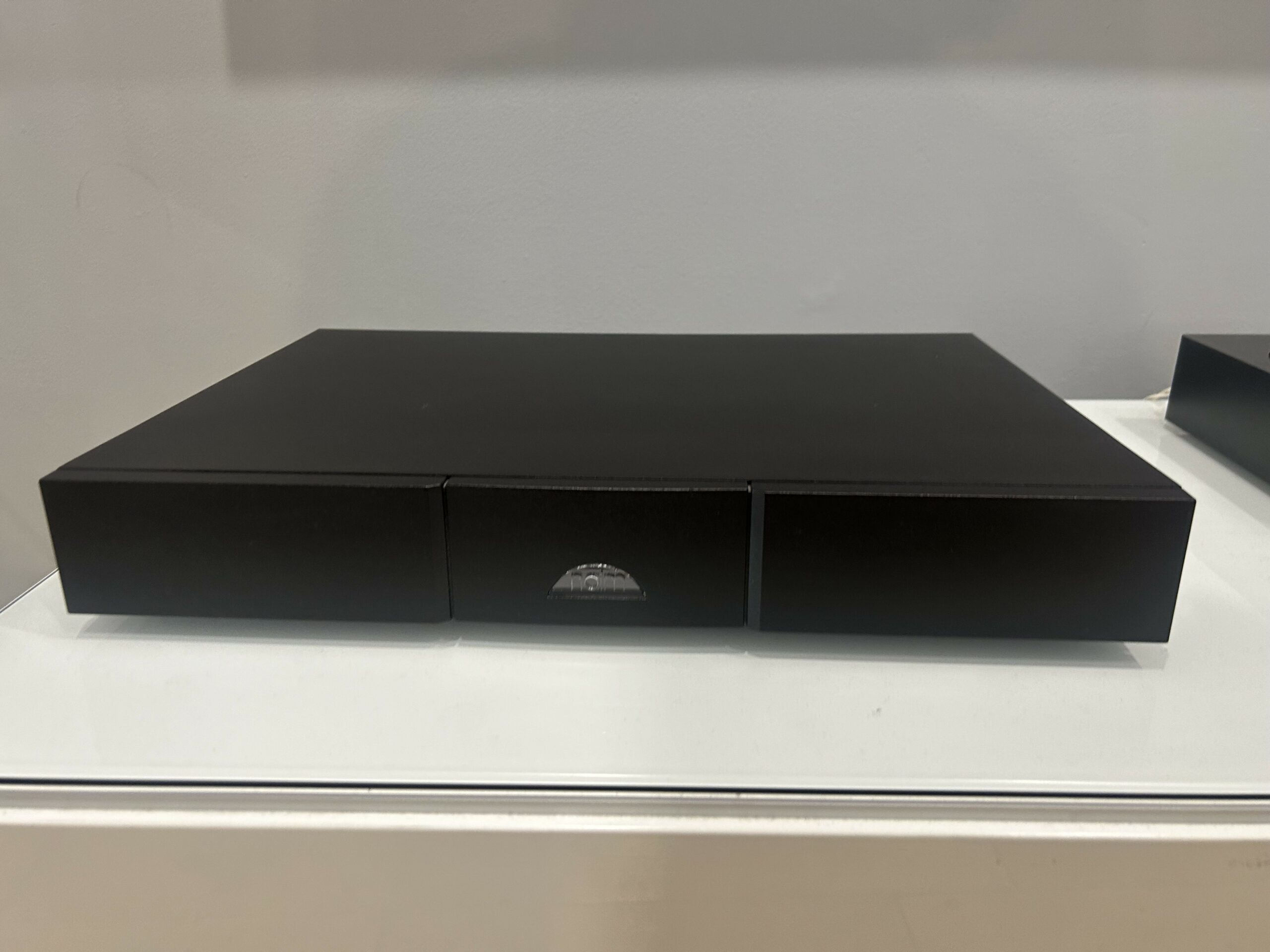

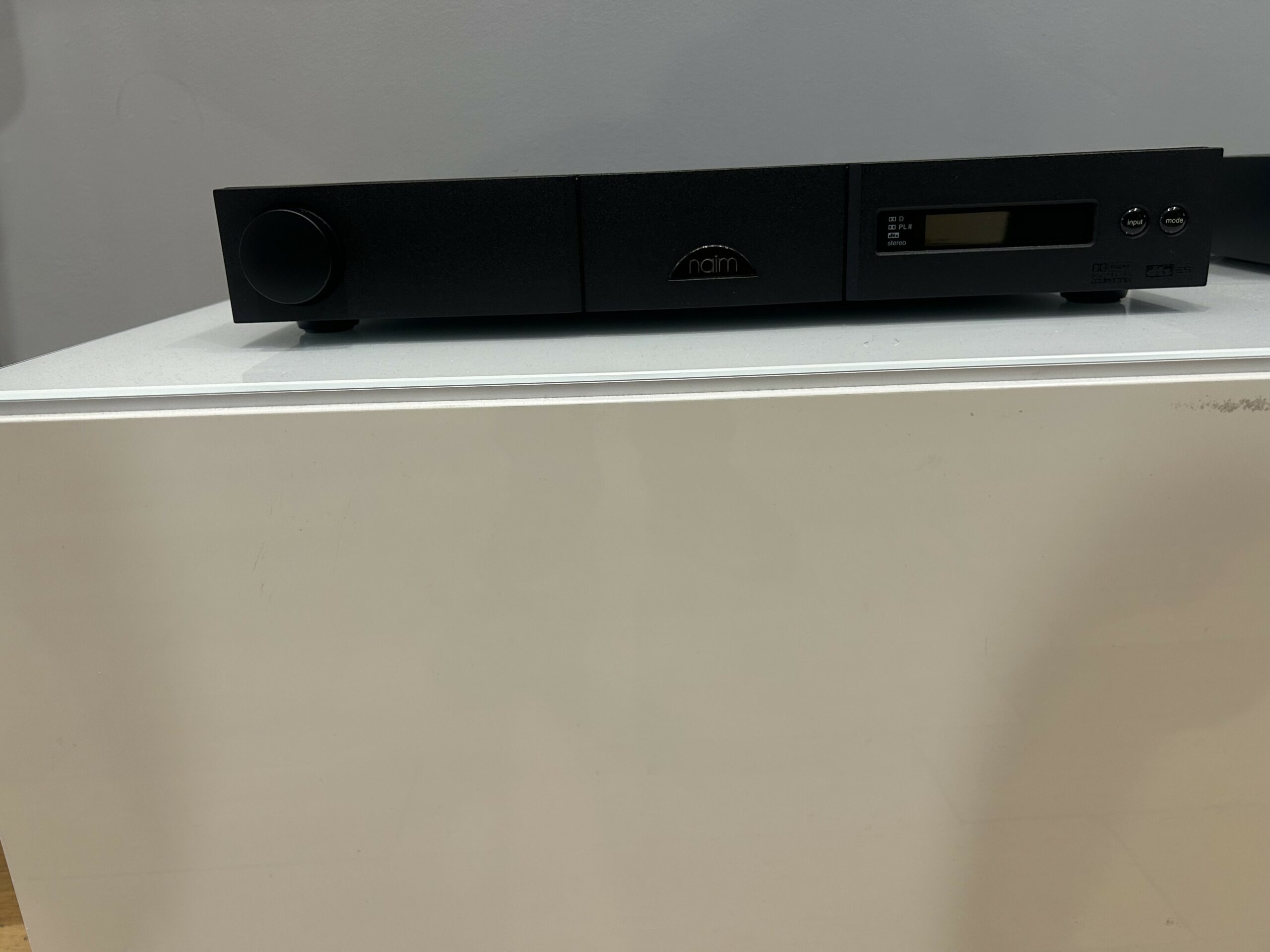

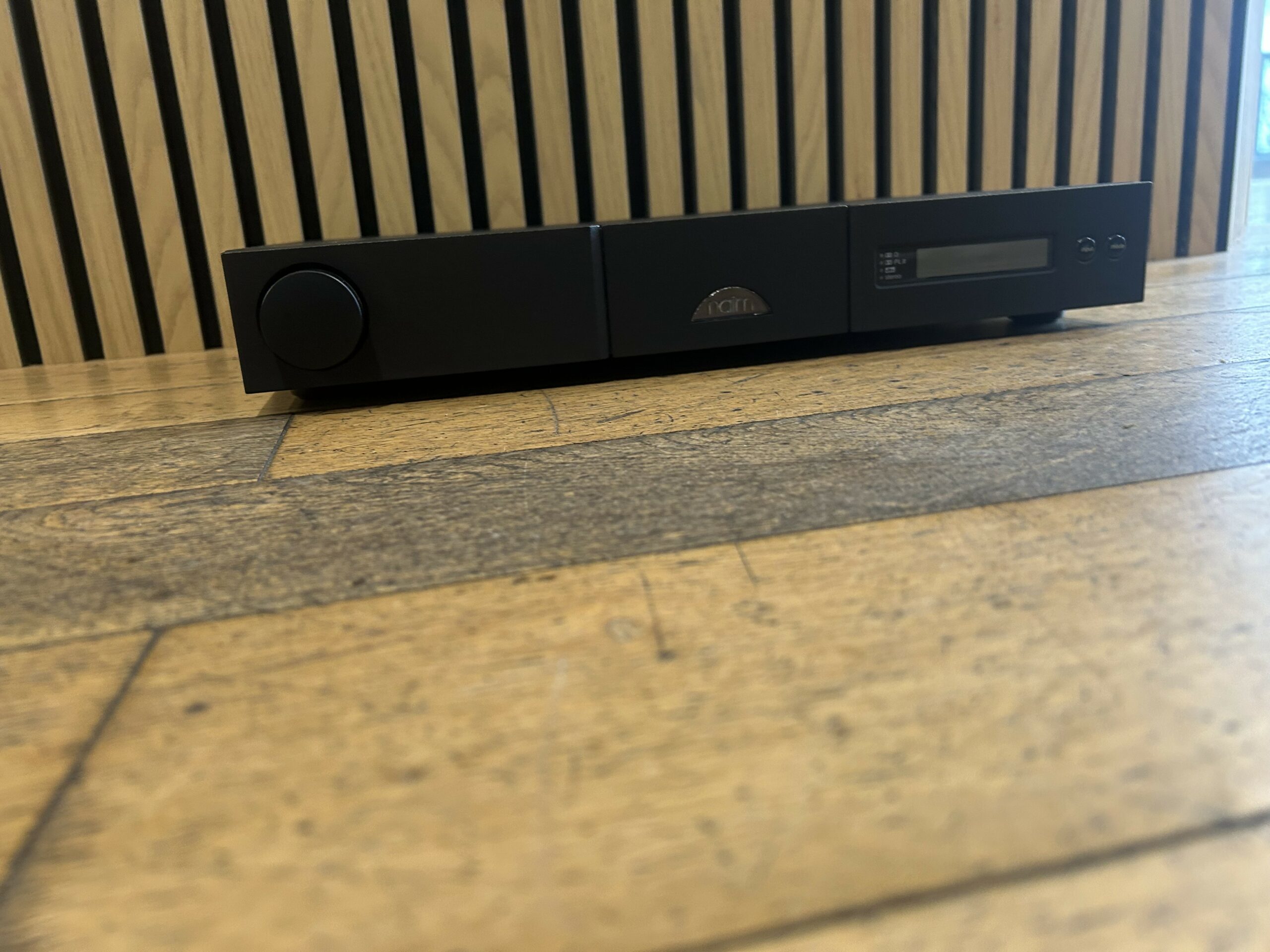

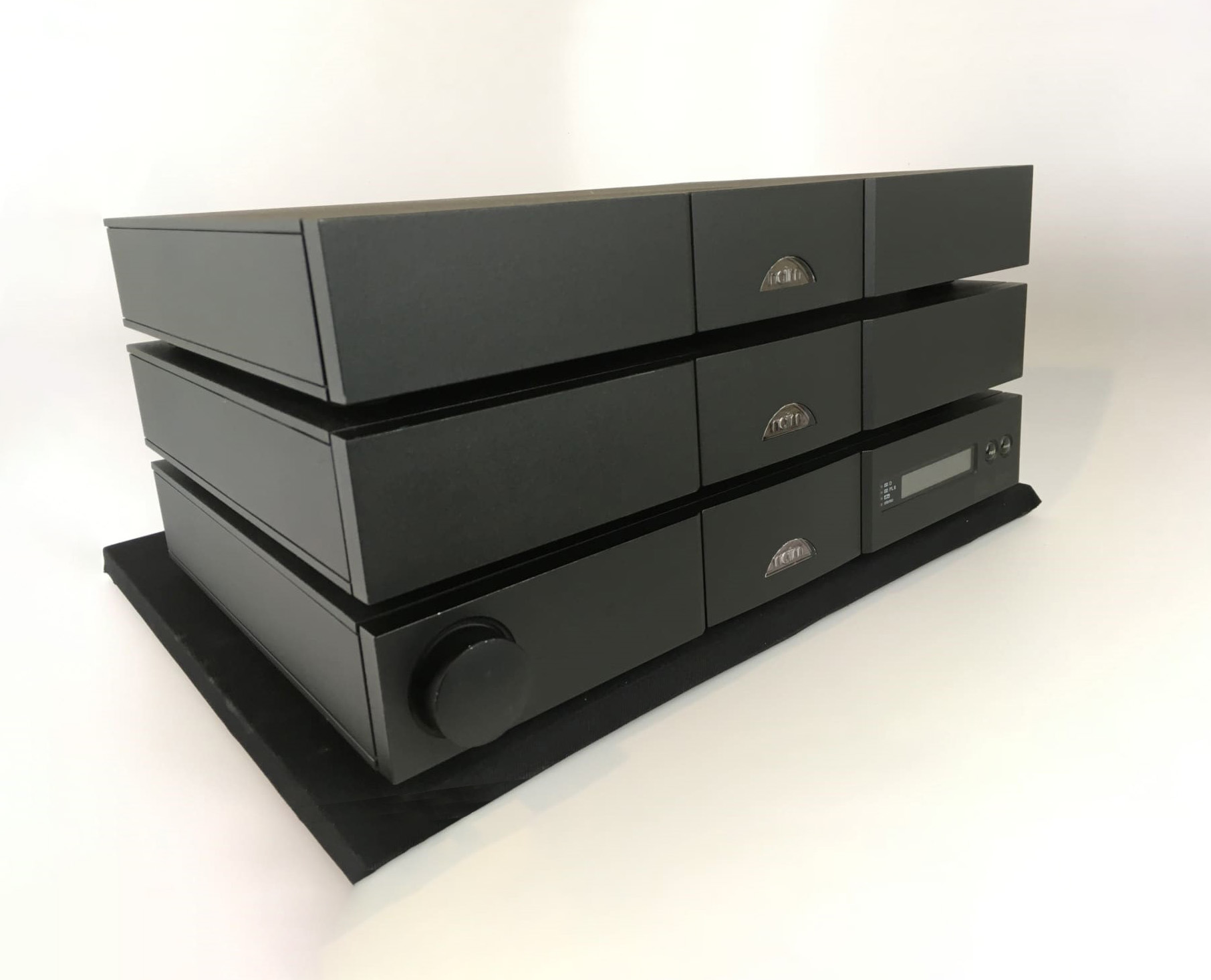

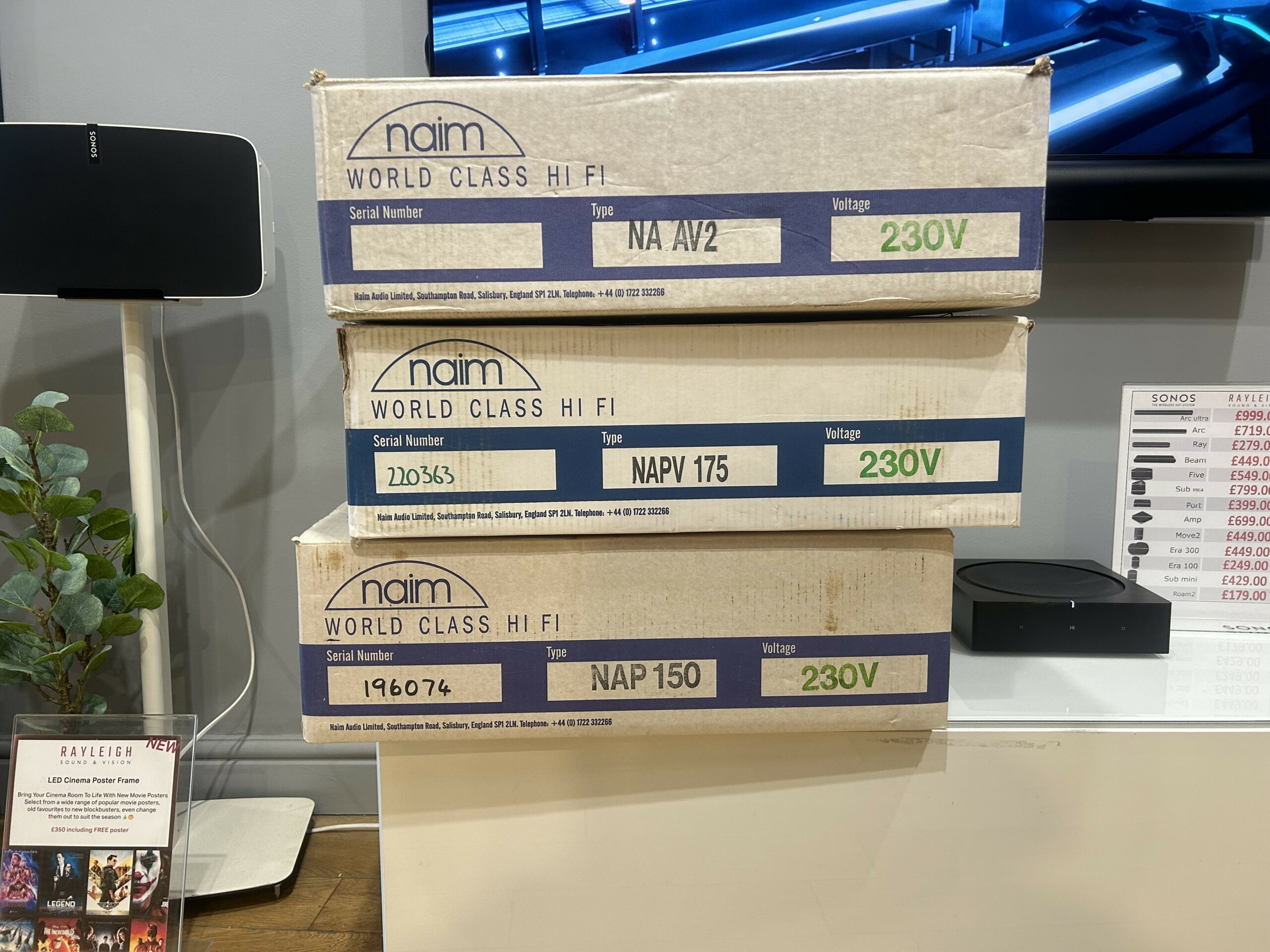

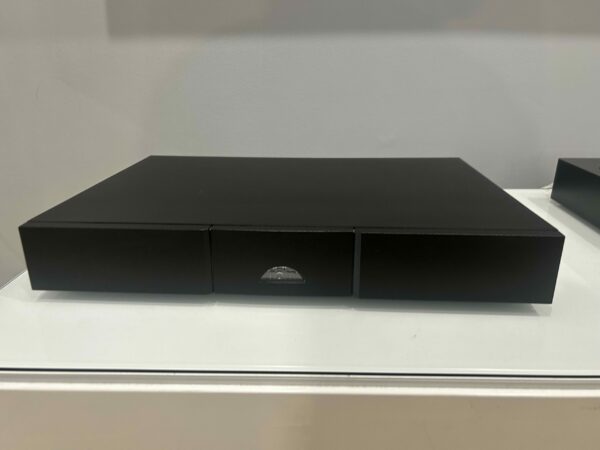

(PRE- OWNED) Naim NAP AV2, NAP V 175 and NAP 150

Inputs: Six stereo analogue; two coaxial digital, two optical digital
Outputs: Main left and right; Surround left and right; Centre; Extra rear left and right; Sub-woofer. Two coaxial digital; One optical digital
Digital input:
Frequencies: 32 kHz; 44.1 kHz; 48 kHz; 96 kHz
Connector: Coax RCA and optical TOSlink
Impedance: 75Ω
Level: Coax – greater than 200 mV pp; Optical – 27 to 14.5 dBm
Digital Output:
Format: SPDIF
Connector: RCA
Impedance: 75Ω
Level: 550 mV pp
Analogue Input:
Connector: RCA and DIN
Impedance: 47 kΩ
Level nominal: 2 V rms
Analogue frequency response: 20 Hz – 20 kHz
Compatibility: DB, DTS L3. DTS NEO 6, Dolby AC3, Dolby PLII. Dolby Digital EX.
Decode Modes: Direct; Mono; Stereo; Dolby Digital; Dolby Digital Surround EX; Dolby Pro Logic II; DTS; DTS Neo:6; DTS-ES
Mains Supply: 100 V; 115 V; 230 V – 50/60 Hz
Dimensions: 432 (W) x 301 (D) x 70 (H) mm

Analogue Inputs: RCA and DIN
Input Impedance: 18kΩ
Gain: +29dB
Frequency Response: -3dB at 3Hz – 50kHz
Speaker Outputs: 3 channels, 4mm “banana” sockets
Power Output: 50W/channel, 8Ω
Transient: 250 VA
Mains Supply: 100 V, 115V, 230 V; 50 or 60 Hz
Dimensions: 432 (W) x 301 (D) x 70 (H) mm

Power Output (Continuous, 8Ω): 50W

Voltage Gain: +29dB

Input Impedance: 18kΩ

Frequency Response: -3dB @ 5Hz to 40kHz

Mains Supply: 100V, 115V, 230V (50 or 60Hz)

Dimensions (H x W x D): 70mm x 432mm x 301mm
