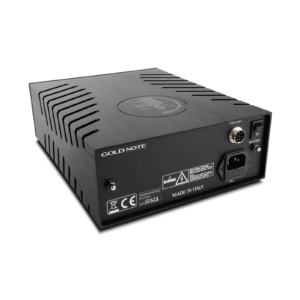

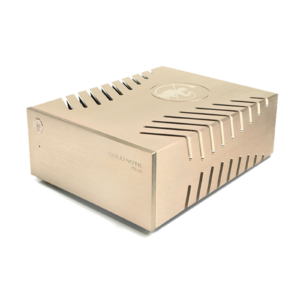

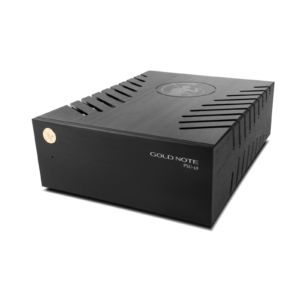

GOLD NOTE PSU-10

An external inductive power supply that improves the sound performance of the PH-10 phono stage. These special external power supplies have been designed to enhance your Gold Note system and are part of the modular design of the Gold Note 10 series. Having been developed with a Super Inductive Dual Choke hybrid design. They feature an inductive filter on the analogue stage and a dual choke design powered by a double inductor driving both the negative and positive high-current stages.

£1,200.00

SKU: GOLD NOTE PSU-10 Categories: , , , , Tag:

To enquire about this or any other product,
please call either Rayleigh 01268 779762
or Chelmsford 01245 265245.

The Gold Note proprietary Dual Choke design perfectly filters the signal voltages to eliminate any interference and electrical noise from the AC mains

With its massive power supplies, The PSU-10 provides a shield from the mains forming complete insulation and thus creating an ideal working environment for the electronics to perform at their best. The large and ultra-clean power generated enhances noise reduction giving greater dynamic, better resolution and finer audio details.

Dedicated to the PH-10 phono stage, the PSU-10 features a 4 power supply stages with 4 ultra-low noise voltage regulators. The device is powered by 4 transformers (3 dedicated to the power supply and 1 for the inductive dual choke special filter).

IMPORTANT! – FOR PH-10 WITH SERIAL NUMBER LOWER THAN 56802



Technical Specifications

TECHNICAL FEATURES: Four rail audio grade power supply

MAXIMUM VARIATION OF OUTPUT VOLTAGE: 0,05 %

LINE NOISE REJECTION: >80dB

COMMON MODE NOISE REJECTION: >80dB

FULL POWER RESPONSE TIME: <2,5µsec

POWER SUPPLY: 100V – 120V / 220V – 240V with automatic selection, 50/60Hz

POWER CONSUMPTION: 25W

DYNAMIC POWER: >50W

STAND BY POWER: <1W

FUSE: 500mA T (time lag)

DIMENSIONS: 200mm W | 80mm H | 260mm D

WEIGHT:

Kg. 3 – net

Kg. 4 – boxed
